Super - Android 6

ssnuno1

bencebacsi replied at 2017-2-28 11:43
Fast charging works properly with this latest Android 6.0 update. Even with the current 7.0 versio ...

But is it normal to reach almost 50º centigrades, during fast charge?

bencebacsi

ssnuno1 replied at 2017-6-22 05:53
But is it normal to reach almost 50º centigrades, during fast charge?

Yes, if the enviropnmental temperature is above 30 °C and you also fully load the CPU at the same time.

ssnuno1

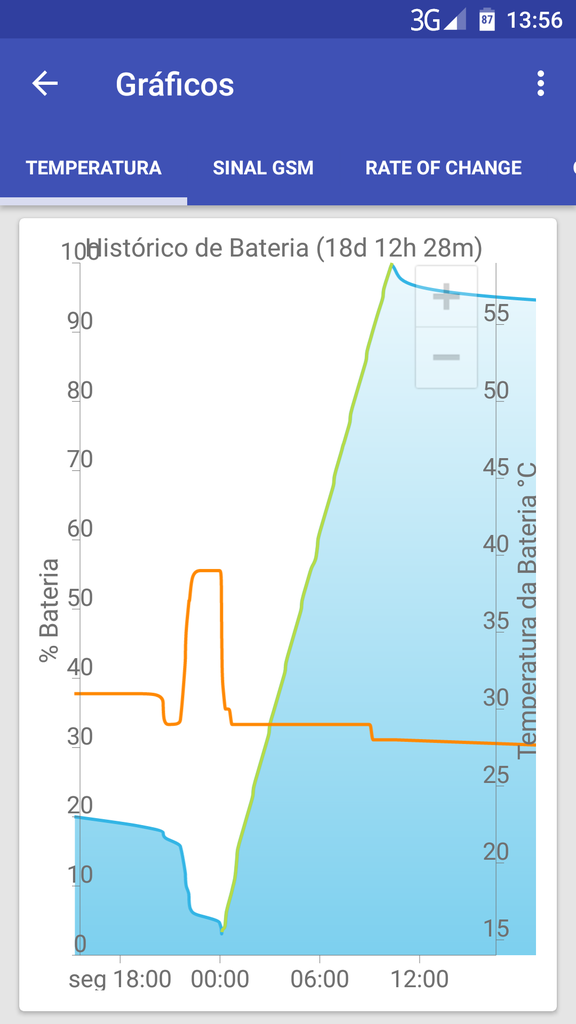

This one was with original charger:

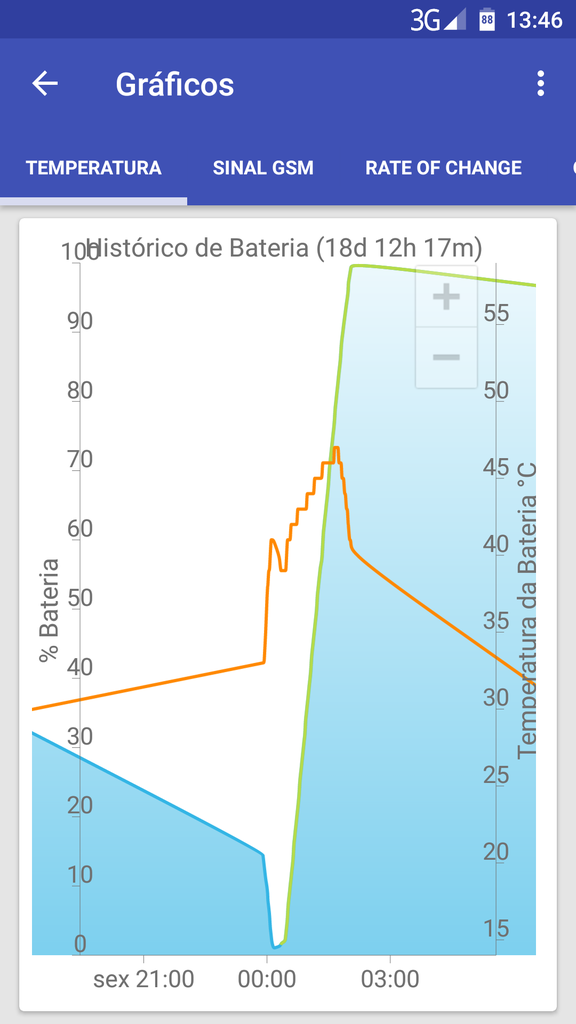

This one was charged thru the PC USB:

ssnuno1

\n\nSry for the huge pics

My greatest fear is that these high temperatures during the charge, ultimately, end up to damage the battery...It would probably be best not to use the original charger... only a thought.

bencebacsi

ssnuno1 replied at 2017-6-23 06:09
Edited by ssnuno1 at 2017-6-23 06:28 \n\nSry for the huge pics

My greatest fear is that these h ...

A computer USB port can charge the battery at least 4 times slower than the stock fast charger, producing much less heat dissipation. What's youre environmental temperature there?

ssnuno1

Well, around 00h00/01h00, I think the temperature will be +/- 15º centigrades.

bencebacsi

ssnuno1 replied at 2017-6-24 01:39
Well, around 00h00/01h00, I think the temperature will be +/- 15º centigrades.

It's not that high. By the screenshots I cannot identify the app that you're using for monitoring. Could you please share its play store link?

ssnuno1

\n\nhttp://www.gsamlabs.com/

Gsam battery monitor

https://play.google.com/store/apps/details?id=com.gsamlabs.bbm

bencebacsi

ssnuno1 replied at 2017-6-25 05:43
Edited by ssnuno1 at 2017-6-25 08:38 \n\nhttp://www.gsamlabs.com/

Gsam battery monitor

Could you describe your place and conditions of charging? For example, do you store your phone in a case (if yes, what kind of?), on the hard surface of a table or on/under a pillow or a sheet or on a free stand, do you keep the screen turned on while charging etc.?

ssnuno1

Well, I use the original plastic back cover.
I let the phone to charge up on the computer desk or on my bedside table with the screen turned off (always).
The phone is allways on stand by during charge.
I don´t see any reason to such overheat and it only happens with the original charger.

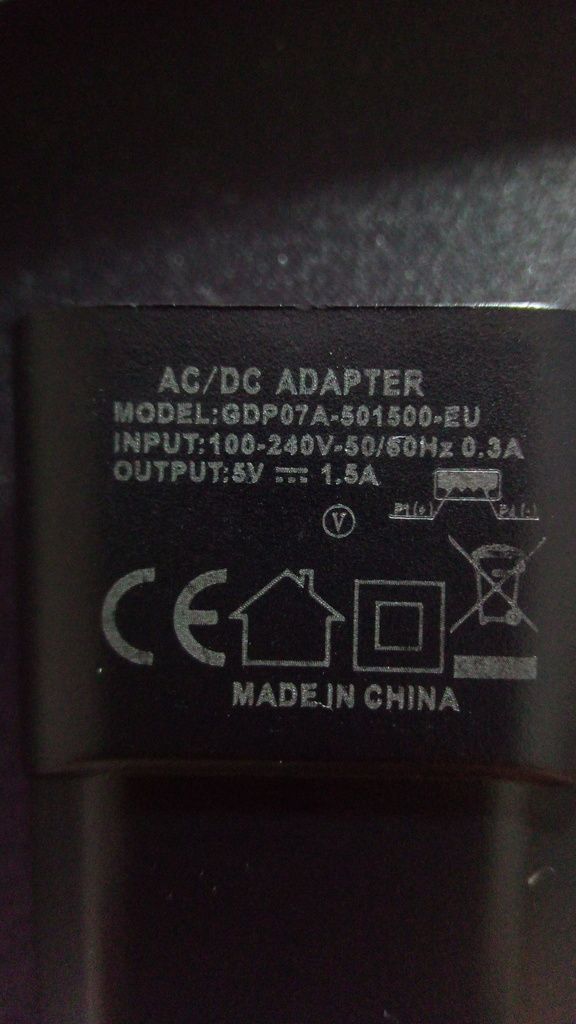

I´ve already tried with similar charger I´ve got (output 5v---1.5A)

and temperature keeps stable.
It has to be the original charger fault.
